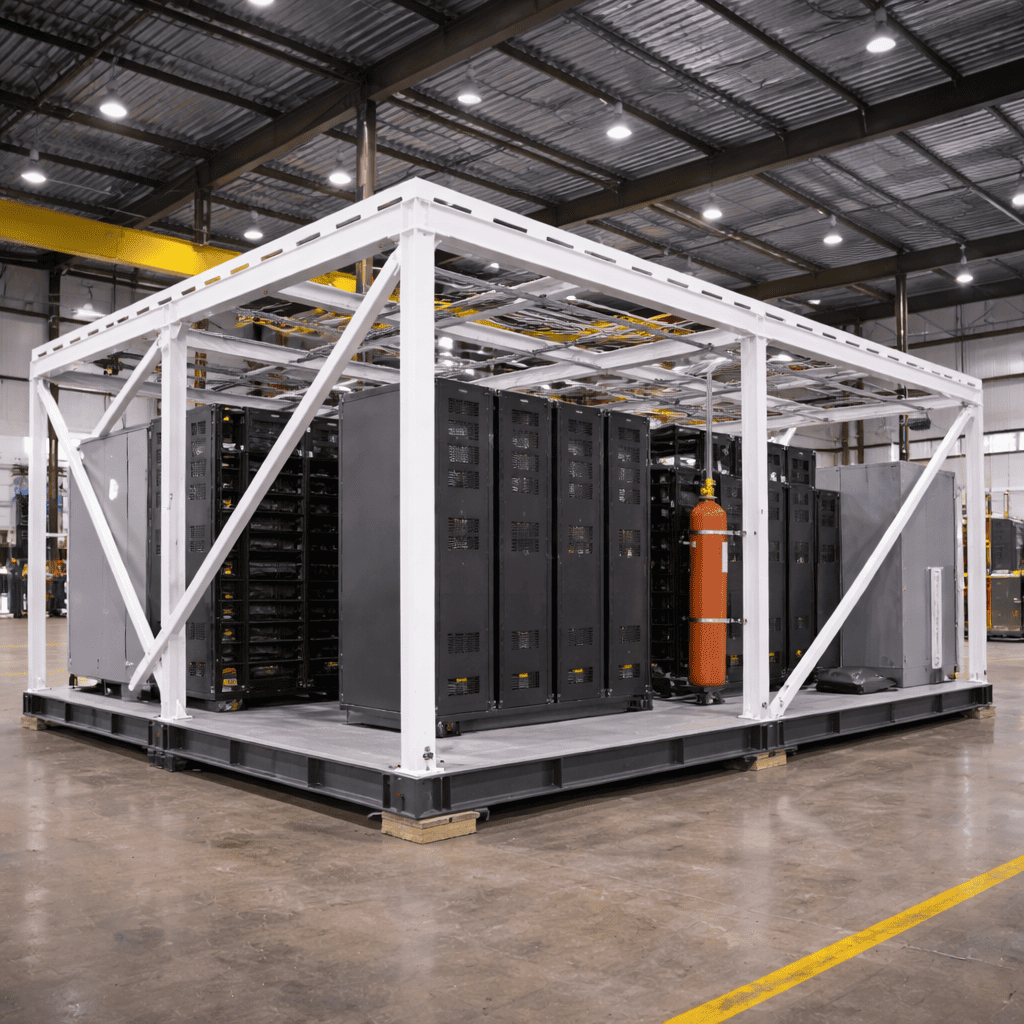

Structural skids for Modular Data centers
Structural skids for Modular Data centers
Cyclotron Industries is the manufacturer/exporter of Structural skids for Modular data center. Based out of Pune, India we deliver industry-grade and heavy-duty fabricated Skid frames depending on the specialized requirements.
We specialize in custom fabrication of high-load Structural skids frame used in Battery storage, Other applications in Data centers.
Structural Skids for Modular Data Centers – Heavy Duty Fabricated Frames
When you are building a modular data center, everything starts from the ground up literally. The structural skid is the foundation that supports your entire infrastructure. Get it wrong, and you are looking at rack misalignment, cooling failures, and expensive field corrections. Get it right, and your entire modular system clicks into place with precision.
At our site, we fabricate heavy-duty structural skids for modular data centers, specifically engineered for these applications. From containerized data center base frames to battery and UPS support skids, we bring together structural welding, CNC machining, and precision inspection under one roof.
Whether you are an EPC contractor, a hyperscale data center developer, or an IT infrastructure OEM, our skids are built to carry your load in every sense of the word. Let us walk you through everything you need to know.
Data center parts manufacturer
Best Structural skids fabrication services by Cyclotron Industries. We offer high precision, fast and accurate fabrication solutions for any kind of metal applications
Custom Structural Skids for Modular Data Center Infrastructure
Structural skids are fabricated steel base frames that form the load-bearing foundation of modular data centers, supporting server racks, cooling units, UPS systems, and electrical switchgear in one rigid assembly. Modular deployments demand precise engineering; even minor flatness deviations can misalign racks, stress pipework, and cause vibration damage over time.
Our team provides Modular data center skid fabrication that distributes weight evenly, maintains dimensional stability during transport and operation, and connects smoothly with electrical, cooling, and IT modules. Hence, your site team hits the ground running.
Types of Data Center Structural Skids We Manufacture
Here are the types of Modular data center skid fabrication that we fabricate:
1.Containerized Data Center Base Frames: Our containerized data center skids are built to fit standard ISO container footprints or custom enclosure sizes. These frames carry the full combined load of racks, cooling systems, and power infrastructure while surviving road transport and crane lifts without deformation.
2. Mechanical & HVAC Integration Skids: We fabricate skids for mounting CRAC units, precision cooling equipment, and ductwork assemblies. These skids include machined mounting pads and vibration isolation provisions to protect both the equipment and the building structure beneath.
3. Electrical Equipment Mounting Skids: Our electrical skids are engineered to support switchgear, transformers, PDUs, and bus duct systems. Precise anchor bolt patterns and flat mounting surfaces ensure that electrical equipment sits square and secure from day one.
4. Battery & UPS Support Skids: Battery banks and UPS systems are heavy, and their weight distribution is uneven. We design and fabricate dedicated support skids with reinforced cross-members, calculated load paths, and surface treatments that resist battery acid and corrosive environments.
5. Multi-Module Interconnected Structural Platforms: For large-scale deployments, we fabricate multi-module platforms that interconnect several skid sections into one unified structural system. These are engineered for field-bolted assembly, with pre-drilled splice plates and alignment features built right into the frame.
Our Fabrication Capabilities for Modular Data Center Skids
We are not a light fabrication shop. Our Data center skid structure facility is specially built for heavy structural work, and when you’re specifying infrastructure-grade skids, that distinction matters.
Every project we execute is supported by robust capabilities, including:
Heavy structural fabrication using plate, beams, channels, and hollow sections
Large-format welded assemblies carried out with qualified procedures and certified welders
CNC machining of critical mounting surfaces to ensure flatness and accurate equipment seating
Precision drilling of anchor bolt holes to exact positional tolerances
Strict flatness and alignment control across long frames using surface plates and laser measurement systems
Surface finishing options such as powder coating, epoxy painting, and hot-dip galvanizing
Pre-dispatch dimensional inspection, with detailed measurement reports provided as standard
When structural integrity and dimensional accuracy are non-negotiable, we are the partner that delivers the consistently and reliably.
Best Structural skids fabrication services by Cyclotron Industries. We offer high precision, fast and accurate fabrication solutions for any kind of metal applications
Engineering Considerations in Data Center Structural Skids
The Reliable data center performance starts at the structural level, where skids must be engineered to handle loads, control vibration, maintain precision, and ensure safe transport and installation.
Static & Dynamic Load Capacity
We calculate both static loads (the dead weight of equipment) and dynamic loads (operational vibration, seismic events, transportation shocks) to correctly size every structural member. Nothing is guessed — everything is calculated.
Vibration Isolation for IT Equipment
Servers and networking equipment are sensitive to vibration. Our skids can be designed with integrated anti-vibration mounts and isolation pads that absorb mechanical noise from cooling fans, generators, and HVAC equipment before it reaches your IT hardware.
Tolerance Control & Leveling Accuracy
We hold tight flatness tolerances across full skid lengths, and we incorporate leveling feet or shim provisions so your site team can achieve perfect level at installation without cutting or grinding.
Corrosion Protection for Outdoor Installations
Outdoor modular data center skid fabrication is exposed to rain, humidity, UV radiation, and industrial environments. We apply appropriate surface treatments — from hot-dip galvanizing to multi-coat epoxy systems — based on your site environment and design life requirements.
Transportation & Lifting Provisions
Every skid we build includes engineered lifting lugs, forklift pockets, or spreader beam attachment points. These are not afterthoughts — they are designed, positioned, and load-rated as part of the skid structure.
Seismic & Wind Load Considerations
For data centers in seismic zones or exposed outdoor locations, we factor in lateral loads from earthquakes and wind into the skid design. Anchor bolt patterns and base plate sizing are calculated accordingly.
Fabrication + Machining Under One Roof
Most skid fabricators weld structures and outsource machining, creating delays, handling risks, and tolerance mismatches that quietly compound across your project. We eliminate all of that by keeping fabrication and machining under one roof, giving you tighter control, faster delivery, and a skid that’s truly ready to work.
Here’s what our integrated capability means for you:
Machined Mounting Pads
We machine every mounting pad to a precisely flat surface, so your equipment seats exactly where it should. This improves load distribution, eliminates installation errors caused by uneven bases, and removes the guesswork that comes with outsourced work.
Flatness Control After Welding
Welding distorts metal — that’s a fact of fabrication. What sets us apart is that we correct it. Our post-weld CNC milling restores consistent flatness across long frames, maintaining the strict tolerances your critical equipment demands.
Integrated Equipment Alignment
Rather than leaving alignment to chance on site, we align all equipment interfaces during manufacturing. Every component is positioned with precision, so everything fits together seamlessly when your team arrives — no surprises, no adjustments.Anchor Bolt Hole Accuracy
Assembly-Ready Skid Delivery
We drill anchor bolt holes to match your civil foundation layouts exactly. This means your installation team can move quickly, avoid costly rework, and trust that what we’ve built aligns perfectly with what’s in the ground.
When your skid arrives, it’s ready to go. We deliver fully prepared skids so your team can mount equipment directly without structural modifications, on-site corrections, or lost time. That’s the difference our integrated process makes — and it shows up on every project.
Industries & Clients We Serve
We partner with organizations across the entire data center ecosystem, delivering specialized expertise to the people and companies who power the digital world.
Hyperscale Data Centers
You’re operating at a scale where every decision has massive consequences. Cyclotron Industries supports the world’s largest cloud and internet platforms with high-performance solutions designed to meet the demands of rapidly growing, mission-critical infrastructure.
Colocation Providers
Your clients rely on your reliability, and you can rely on us. We help multi-tenant facilities streamline operations, maximize uptime, and consistently meet commitments.
Data Center EPC Contractors
Partnering with engineering, procurement, and construction teams to keep complex builds on schedule, on spec, and on budget.
IT Infrastructure OEMs
Enabling original equipment manufacturers to bring innovative, market-ready solutions to data center operators worldwide.
Renewable Energy-Integrated Data Facilities
Sustainability isn’t just a goal, it’s the future. Cyclotron Industries supports forward-thinking facilities that are redefining what a data center can be by combining high-density compute with clean, renewable energy infrastructure.
Industrial Server Rooms
Not every environment is a hyperscale campus — and that’s okay. We provide tailored solutions for enterprise and industrial server rooms where dependability and operational efficiency are non-negotiable.
Best Structural skids fabrication services by Cyclotron Industries. We offer high precision, fast and accurate fabrication solutions for any kind of metal applications
Cyclotron group clients
Why Choose Us for Modular Data Center Structural Skids?
Data center structural skid manufacturer and OEMs return to us because we deliver:
- Single-facility fabrication and machining shorter lead times, fewer handoffs
- Infrastructure-grade assemblies built to perform from day one
- Engineering support from concept to dispatch
- On-time delivery backed by clear scheduling and client communication
- Export-ready packing, documentation, and certification
- Full quality inspection with complete project records
We don’t just build skids. We build confidence in your project.
