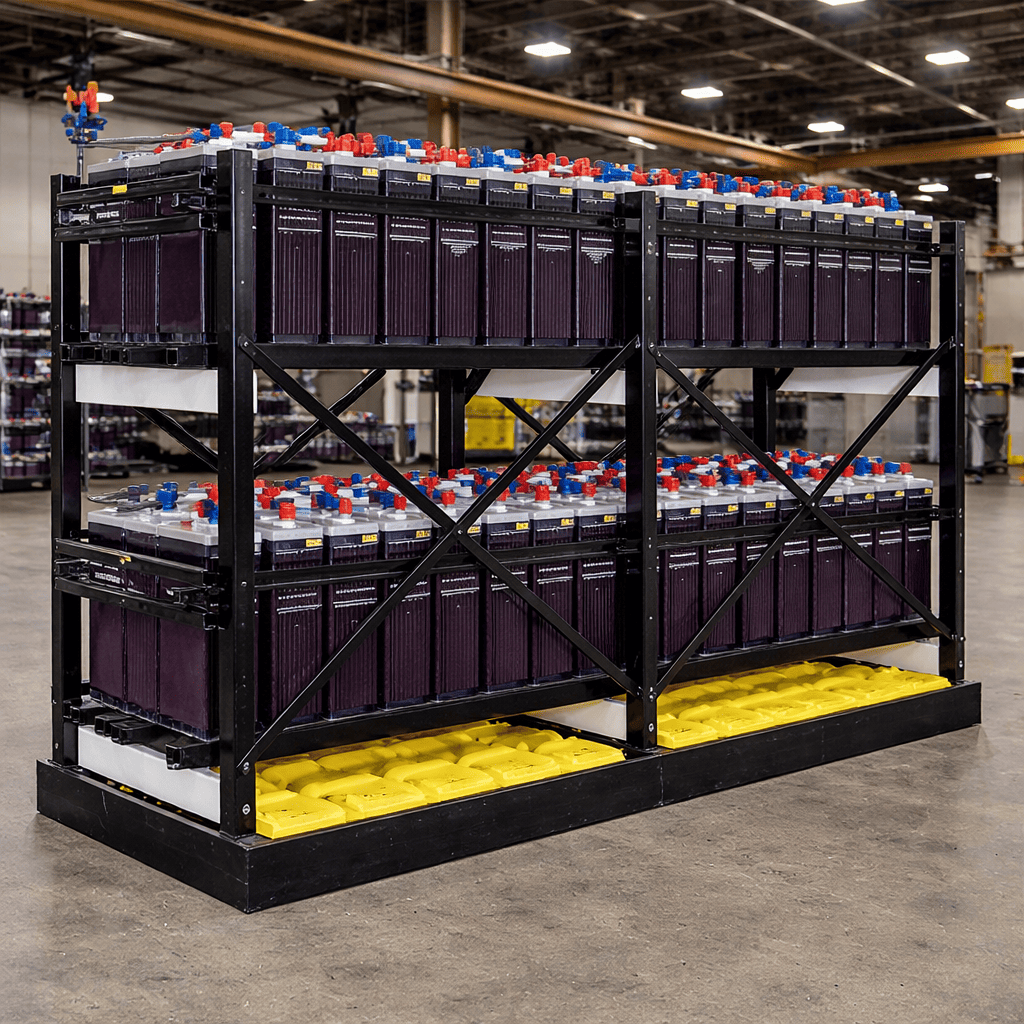

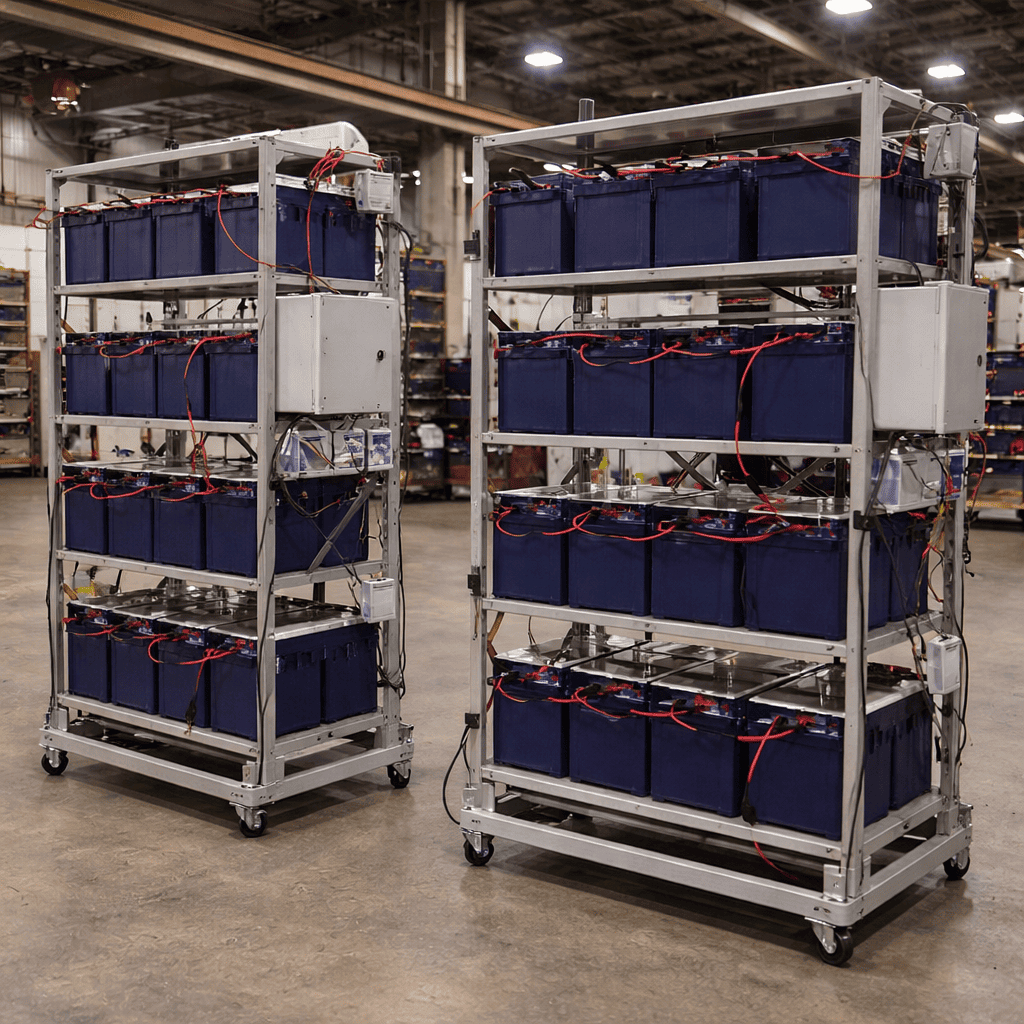

Battery Rack Systems Manufacturer
Battery rack systems manufacturer
Cyclotron Industries is a reputed Battery rack system manufacturer in India.
We fabricate custom BESS battery racks, UPS battery shelving, and seismic-resistant rack structures for renewable energy, data centres, and industrial backup power projects.
Custom Battery Rack Systems for BESS, UPS & Renewable Applications
A battery rack is more than a shelf. It is a high-load-bearing structure that holds some of the heaviest and energy-dense structures in the modern power system. As a trusted battery rack system manufacturer, Cyclotron Industries designs and manufactures structurally sound, high-load, modular battery rack systems tailored for modern energy storage needs. Regardless of you deploying a containerized BESS project, building a data centre UPS room, or manufacturing backup power for an industrial facility, the rack structure carrying those heavy modules needs to perform and hold up without compromise.
Battery systems concentrate heavy weight onto a small area. Each shelf can carry hundreds of kilograms. Add thermal loads, vibration from nearby equipment, seismic risk on utility-scale sites, and the need for safe cable routing, and it becomes clear why structural precision matters at every stage of fabrication. We supply assembly-ready structures to BESS integrators, UPS OEMs, EPC companies, and industrial project contractors across India.
Data center parts manufacturer
Cyclotron Industries is a reputable Battery rack systems fabrication Company in India. With the engineering-first approach, we manufacture Battery energy storage system skids that are ready for installation from day one.
Types of Battery Rack Systems We Manufacture
1.BESS Container Battery Racks
They are designed for high-density lithium battery module installations inside containerized BESS energy storage systems. These racks are engineered to maximize vertical space utilization while maintaining strict weight distribution requirements and ventilation clearances.
2. UPS Battery Rack Systems
A UPS battery rack system is purpose-built for data centre and critical backup power environments where reliability and accessibility are critical. These systems accommodate lithium battery banks, with provisions for cable trays, monitoring hardware, and front-access servicing.
3. Seismic-Resistant Battery Racks
For utility-scale and grid-connected renewable energy projects where seismic compliance is specified. The seismic battery rack frame is fabricated with reinforced joints, base isolation provisions, and lateral bracing to meet seismic load requirements.
4. Modular Expandable Rack Structures
The modular rack structures are designed so that additional tiers or bays can be added without rebuilding the existing structure. Particularly useful for phased project deployments where storage capacity will grow over time.
5. Heavy-Duty Industrial Battery Shelving Systems
Built for large battery banks in industrial backup power applications, telecom installations, and off-grid energy systems. These structures support high per-shelf loads and are designed for long-term, low-maintenance service.
Our Battery Rack Fabrication Capabilities
Our in-house fabrication infrastructure allows us to control quality at every step, from raw material to finished structure.
- We use precision laser cutting and CNC punching to produce shelf plates, uprights, and cross members with consistent dimensions across every production batch.
- Slot positioning, hole patterns, and mounting interfaces are machined to drawing tolerances so that assembly on-site requires no rework.
- Structural bending is performed with CNC press brakes to maintain profile geometry.
- We use MIG/TIG welding for frame joints as per the structural requirements.
- Shelf reinforcement is applied wherever load analysis calls for it, using additional plate thickness, intermediate supports, or formed profiles to prevent deflection under rated loads.
- All fabricated components go through flatness checks and dimensional inspection before surface treatment.
- We offer powder coating and hot-dip galvanizing as standard surface protection options, with coating thickness verified per project specifications.
- Assembly-ready supply means that components arrive at the site pre-fitted, pre-labelled, and ready for installation without additional machining or modification.
Engineering Considerations in Battery Rack Design
Every battery rack system is engineered with real-world performance in mind.
1. Load Distribution & Shelf Strength
Battery modules are heavy, and the load is not always uniform across a shelf. Our design process includes shelf deflection analysis so that each tier is rated accurately and reinforced where required.
2. Seismic & Vibration Resistance
For utility and grid-scale projects, rack structures are designed to withstand specified seismic loads. Base plates, anchor provisions, and frame joints are detailed to maintain structural integrity under lateral and vertical forces.
4. Thermal Ventilation & Spacing
Rack geometry is laid out with battery manufacturer clearance requirements in mind. Ventilation gaps between tiers and at the rear of the rack are maintained to support natural or forced air cooling.
5. Fire Safety & Structural Integrity
In the event of a thermal event, the rack structure must not contribute to failure propagation. We use material grades and coating systems that meet fire safety considerations specified in BESS and data center equipment fabrication project standards.
6. Cable Management Provisions
Integrated cable tray brackets, conduit routing channels, and wire management slots are fabricated into the rack structure so that electrical installation is clean, safe, and serviceable.
7. Modular Expandability
Racks are designed with bolt-on bay extensions and standardized tier spacing so future capacity additions can be completed without structural modifications to existing installations.
Cyclotron Industries is a reputable Battery rack systems fabrication Company in India. With the engineering-first approach, we manufacture Battery energy storage system skids that are ready for installation from day one.
Our Manufacturing Process for BESS Skids
1. Engineering Review & Load Analysis
Our engineering team thoroughly analyses drawings, battery specifications and project requirements.
2. CNC Cutting & Punching
We then perform precision operations like CNC cutting and punching of all structural components to ensure repeatable accuracy.
3. Bending & Structural Welding
Using CNC bending and welding techniques, the desired shape of the component is obtained. A strong and stable framework is built with controlled processes.
4. Surface Treatment & Powder Coating
Based on the working conditions and properties required, we provide surface treatments and powder coatings to induce corrosion resistance according to the standards.
5. Assembly & Quality Inspection
The battery rack system undergoes multiple inspections like dimensional inspection, fitment check, visual inspection, and quality control standards.
6. Packaging & Dispatch
We provide protected packaging for safe dispatch and transit to the project on-site.
Why Choose Us as Your Battery Rack System Manufacturer?
As a modular battery rack structure manufacturer, here is what makes Cyclotron Industries stand out:
- Modular engineering support: Our engineering team reviews your battery module layout and optimizes the rack design before fabrication begins.
- Repeat production capability: With in-house equipment and tooling, along with CNC programs, deliver identical dimensions and consistent production batch after batch.
- High load structural design: The shelves are designed and reinforced based on actual load calculations, not generic estimates.
- Fabrication and machining integration: One in-house facility for cutting, welding, machining, and surface treatment.
- EPC-ready documentation: Material certificates, dimensional reports, and compliance records supplied with each order
- On-time delivery: Each project has clearly defined milestones and is delivered on-time.
Cyclotron Industries is a reputable Battery rack systems fabrication Company in India. With the engineering-first approach, we manufacture Battery energy storage system skids that are ready for installation from day one.
Cyclotron group clients
Frequently Asked Questions
1. What load capacity can your battery racks support?
We design racks based on your battery specifications, with high-load capacities tailored per shelf.
2. Do you manufacture racks for lithium batteries?
Yes, we specialize in lithium battery rack fabrication for BESS and advanced energy systems.
3. Are your racks seismic-resistant?
We manufacture seismic-resistant rack structures for utility-scale and grid-connected projects. Seismic design is done per project specification, and compliance documentation is available.
4. Can you customize rack height and tier configuration?
Yes. Rack height, number of tiers, inter-tier spacing, bay width, and depth are all customizable. Share your battery module dimensions, and we will configure the rack accordingly.
5. What surface coating options do you offer?
Our standard surface coating options include hot-dip galvanizing and polyester powder coating. We also offer epoxy primer systems and other special coatings for specific corrosion-resistant project requirements.
6. Do you support containerized BESS projects?
Yes. We regularly provide containerized BESS skid fabrication projects.
