Transformer base frame manufacturer
Transformer base frame manufacturer
Cyclotron Industries is the best Transformer base frame manufacturer in India. We deliver industry-grade and heavy-duty fabricated transformer base frames depending on the specialized requirements.
We specialize in custom fabrication of high-load base frames used in generators, machinery, pumps, and skid-mounted industry systems.
By combining rich experience in heavy fabrication, industry-leading talent, and Pune’s established ecosystem, we deliver durable and high-precision mounting frames built to perform long, even under harsh industrial environments.
Transformer base frame manufacturer in India
Transformers power our modern world, quietly handling massive electrical loads in substations, plants, and renewable projects. Every reliable transformer needs a rock-solid foundation, the transformer base frame. This heavy steel structure bears the entire weight of the unit, absorbs vibrations, keeps everything perfectly level, and protects against oil leaks or harsh weather.
Without a properly engineered base frame, even the best transformer can suffer misalignment, excessive noise, foundation cracks, or premature failure. That’s why EPC contractors and utilities demand custom solutions that are strong, precise, and ready on time.
At our facility, we build these critical supports from start to finish under one roof. From 5-ton distribution units to 200-ton power transformers, we deliver frames that install smoothly, last for decades, and meet every site condition, whether in indoor halls or outdoor seismic zones.
In this guide, we share how we design the transformer base frame and test these frames so you can choose a partner with us who truly understands your project needs.
Cyclotron Industries is the Best Transformer base frame manufacturer in India. We offer high precision, fast and accurate fabrication solutions for any kind of metal applications
Custom Transformer Base Frame Manufacturing Solutions

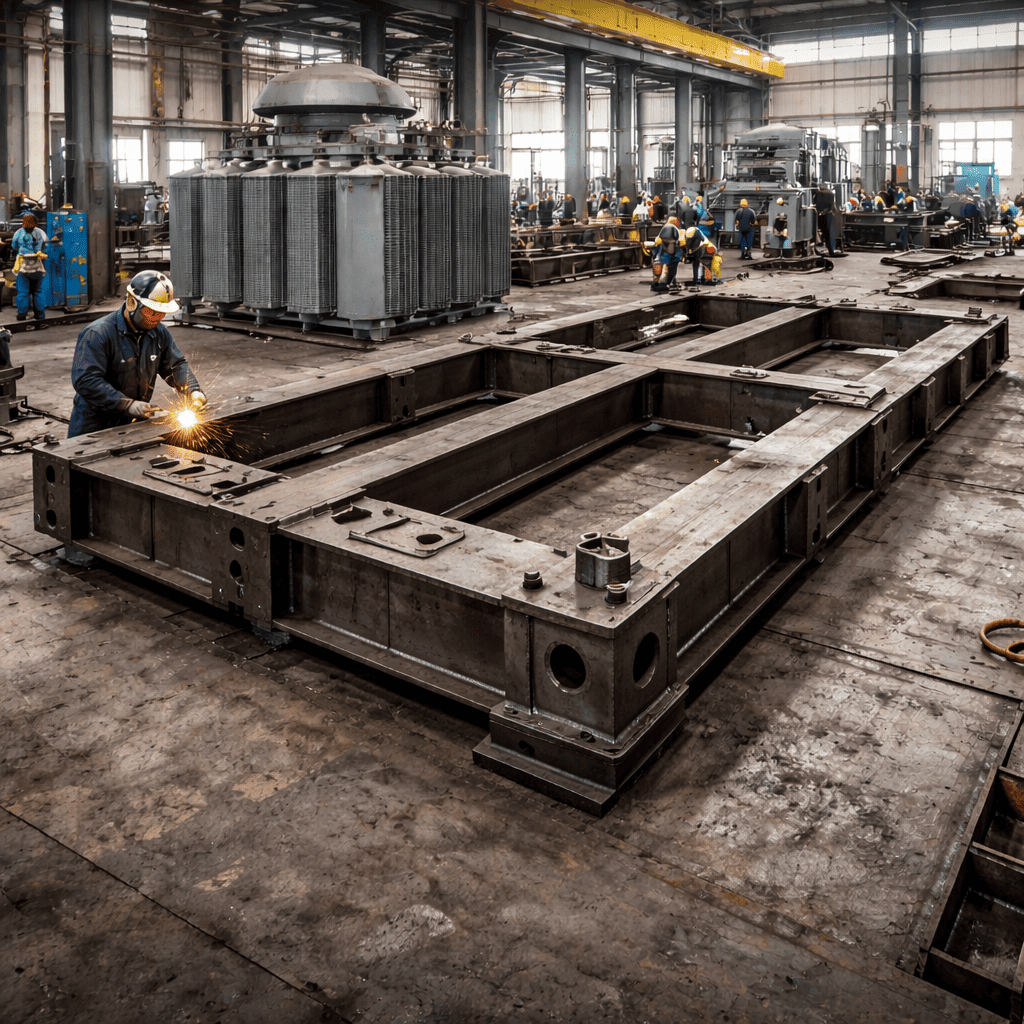

A transformer base frame is a welded steel platform that acts as the transformer’s permanent foundation. It usually consists of I-beams, channels, and thick base plates with precisely drilled anchor holes and mounting pads. The frame distributes the transformer’s heavy weight evenly to the concrete foundation while allowing easy skidding during installation.
Structural integrity is non-negotiable. A typical power transformer weighs 30–150 tons and runs 24×7. Any bending, twisting, or vibration can damage the windings, cause oil leaks, or shorten equipment life. Our power transformer base frames are designed with safety factors above 2.5, ensuring zero deflection even under full load plus wind or seismic forces.
We serve both indoor and outdoor applications. Indoor frames focus on flatness and vibration damping for clean environments such as data centers and factories. Outdoor versions add full galvanizing or epoxy coatings, drainage channels, and weather guards for substations exposed to rain, dust, and temperature swings.
Every frame we build includes load-bearing calculations and vibration-control pads to keep your transformer stable and quiet. EPC buyers love this because it can reduce the site rework, speed up commissioning, and give peace of mind during project handover.
Types of Transformer Base Frames
Here are the important types of heavy duty transformer base frames that we fabricate
1.Power Transformer Base Frames
It is built for high-voltage units (66 kV–400 kV), which are extra-rigid with deep I-beam sections and cross-bracing. They handle 50–200 tons and include extra-large skidding rails.
2. Distribution Transformer Mounting Frames
We fabricate compact, economical frames for 11 kV–33 kV units weighing up to 5 tons. This is ideal for pole-mounted or pad-mounted setups in urban networks.
3. Oil-Filled Transformer Skids
Our dedicated team fabricates oil-filled transformer skids with integrated sump trays and drain valves to help collect and manage potential oil leaks. These containment features support environmental protection requirements and are suitable for installations using oil-immersed transformers.
4. Outdoor Structural Support Frames
Outdoor structural support frames are heavy-duty steel structures typically protected with hot-dip galvanizing for corrosion resistance. They may include sloped surfaces or drainage provisions to prevent water accumulation and are engineered to withstand site-specific wind loads in accordance with applicable design standards.
5. Seismic Resistant Transformer Bases
Seismic-resistant transformer bases are engineered with reinforced structural members and additional stiffeners to improve stability during seismic activity. Designs typically follow IS 1893 guidelines and are suitable for installations in earthquake-prone regions such as North-East India and the Himalayan belt.
Engineering Considerations in Transformer Base Frame Design
Engineering considerations are vital in the design of transformer mounting structure base frames. This can provide a structural strength, vibration control, oil containment, and long-term durability while maintaining safety, reliability, and compliance with industry standards.
1. Load Bearing Capacity & Structural Stability
We calculate static and dynamic loads using finite element analysis. Frames are sized to keep the deflection below L/500 and stress well below 60% of yield strength.
2. Vibration Isolation & Shock Resistance
Rubber or spring isolators and tuned mass dampers reduce vibration transfer to the foundation by up to 70 %. This protects both the transformer and nearby equipment.
3. Oil Containment & Drainage Provisions
Built-in bund walls and sloped channels collect up to 110% of the transformer oil volume. Drain points with valves make cleanup fast and safe.
4. Anchor Bolt Alignment & Foundation Interface
CNC-drilled holes match your foundation layout within ±1 mm. We supply templates so civil teams install anchor bolts perfectly the first time.
5. Corrosion Protection for Outdoor Installations
Multi-layer epoxy or galvanizing plus edge sealing ensures 25+ years of rust-free life even in coastal or industrial atmospheres.
Cyclotron Industries is the Best Transformer base frame manufacturer in India. We offer high precision, fast and accurate fabrication solutions for any kind of metal applications
Fabrication + Machining Under One Roof
Most fabricators weld the power transformer base frame and then send it out for machining, resulting in delays, alignment errors, and additional transport costs. We do both operations in the same plant.
Our CNC gantry machines mill the top mounting faces to exact flatness and drill all anchor and fixing holes in one setup. This guarantees perfect parallelism and eliminates the cumulative tolerances. Alignment checks with laser trackers confirm every dimension before coating.
The integrated workflow means we control quality at every stage, shorten lead times by 30–40%, and deliver frames that fit your foundation without any on-site grinding or shimming. EPC teams tell us this single-roof approach is a game-changer for tight project schedules.
Industries We Serve
Cyclotron Industries is proud to assist with important infrastructure across India and beyond with our precision-fabricated transformer base frame fabrication. Our heavy-duty solutions power projects where dependability, safety, and long-term performance are critical.
We proudly serve:
Power Generation Plants — From thermal and hydro stations to gas-based facilities, we deliver robust frames that support large generator step-up transformers operating under continuous heavy loads.
Electrical Utilities & Transmission Companies — State DISCOMs, grid operators, and substation developers trust our frames for new installations, capacity upgrades, and rural electrification projects.
Infrastructure & EPC Contractors — Leading turnkey contractors rely on us for on-time delivery, precise foundation compatibility, and minimal site rework, helping keep large-scale power projects on schedule and within budget.
Renewable Energy Projects — Solar farms, wind parks, and hybrid power plants require a compact, corrosion-resistant skids that withstand harsh outdoor environments while meeting fast-track project timelines.
Industrial Manufacturing Plants — Steel mills, cement plants, chemical facilities, and heavy engineering units depend on our frames for in-plant transformers operating under vibration, dust, and continuous 24/7 production conditions.
Data Centers & Critical Facilities — Precision-engineered indoor frames with enhanced vibration isolation ensure reliable transformer support and uninterrupted power for servers and mission-critical infrastructure.
Why Choose Cyclotron as Your Transformer Base Frame Manufacturer?
Choosing a Cyclotron as your transformer base frame manufacturer means working with a team that is committed to quality, reliability, and engineering excellence throughout your project.
Heavy fabrication capability
Our advanced facilities support demanding fabrication requirements, delivering robust and durable base frames for all transformer projects.
Machining expertise
Our technicians use precision machinery to achieve exact dimensions and high-quality finishes, ensuring seamless integration with your transformer systems.
In-house QA inspection
Each base frame undergoes thorough quality inspections at our facility to ensure reliable performance.
Custom engineering support
We collaborate with you to understand your project requirements and deliver customized engineering solutions that meet your specifications.
Export-ready manufacturing
Our processes comply with international standards, preparing each base frame for global shipment and smooth customs clearance.
Timely project delivery
We maintain efficient production schedules and clear communication to help you meet deadlines and keep your projects on track.
Cyclotron Industries is the Best Transformer base frame manufacturer in India. We offer high precision, fast and accurate fabrication solutions for any kind of metal applications
Cyclotron group clients
Get a Quote for Generator Engine Mounting Fabrication
Ready to build a reliable foundation for your power system? Contact Cyclotron Industries today for a customized quote on generator engine mounting fabrication. Our team is committed to delivering a precision-engineered solutions tailored to your project’s needs. Partner with us for unmatched quality, timely delivery, and expert support, ensuring your operations run smoothly and efficiently from day one.
