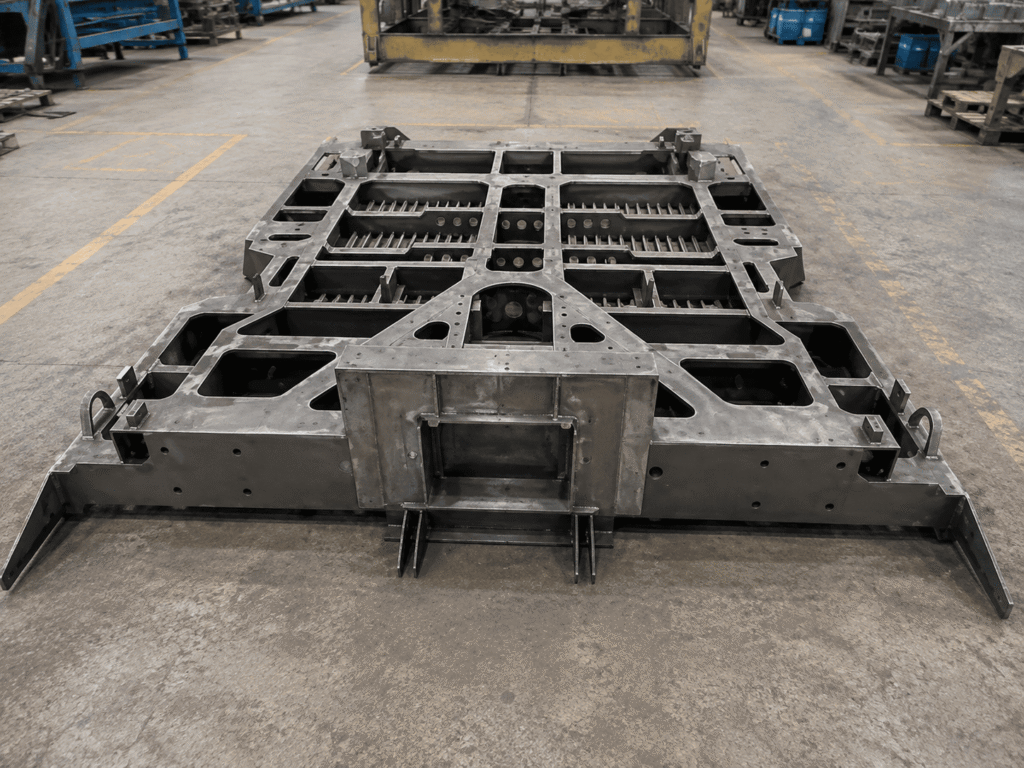

Railway Wagon Underframe Manufacturer in India
Railway Wagon Underframe Manufacturer in India
- Cyclotron is the fastest growing Railway Wagon Underframe Manufacturer in India, based out of Pune.

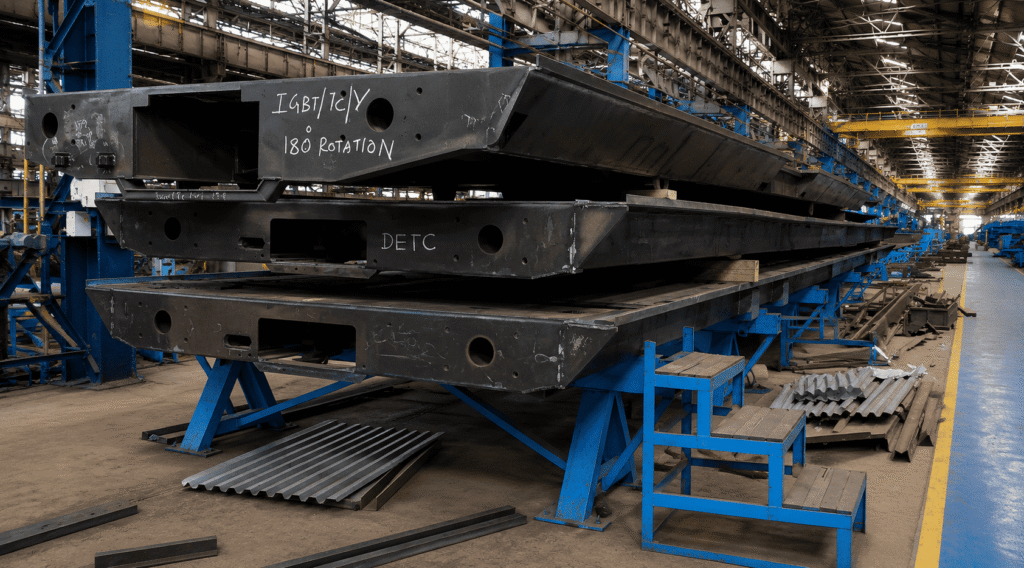

- Cyclotron is ISO 9001 Certified to manufacture heavy structural wagon underframes upto 22 metres in length and 20 tons of weight.
- We also have inhouse underframe assembly fixtures as well as cambering fixtures which are modular for Locomotive underframes, UTV Underframes, Wagon underframes, etc
Wagon Underframe Manufacturer in India
Every minute, thousands of freight trains travel the country carrying the raw pulse of Indian industry: coal, steel, grain, and heavy machinery. While cargo containers and hopper bodies get all the visibility, the real hard work happens out of sight, inches above the tracks. That is where the underframe lives. It takes the full, brutal impact of every sudden stop, every high-tonnage load, and every mile of rough track. If an underframe fails, the whole train stops.
At Cyclotron Industries, we are the leading wagon underframe manufacturer, and we fabricate heavy-duty wagon underframes built to handle that exact strain without buckling. Using custom assembly fixtures, submerged arc welding (SAW), and RDSO-certified steel grades, our dedicated team builds structural chassis that deliver absolute dimensional squareness and long-term durability under extreme axle loads.
Whether you are building standard freight cars or expanding heavy-haul fleets, we deliver the precision chassis your rail operations rely on
- Cyclotron is the fastest growing Railway Wagon Underframe Manufacturer in India, based out of Pune.
- Cyclotron is ISO 9001 Certified to manufacture heavy structural wagon underframes upto 22 metres in length and 20 tons of weight.
Role of the Underframe in Freight Wagons
Think of the underframe as the backbone of a freight car. Sitting directly over the bogies, it carries the entire vertical weight of the payload while taking on severe longitudinal forces the constant pulling (draft) and pushing (buffing) that happen during acceleration and braking.
Without a tough, well-engineered chassis, dynamic twisting forces would quickly cause structural fatigue, frame warping, and dangerous derailment risks. A precision-fabricated underframe distributes these kinetic loads evenly across the center sill, side sills, and bolsters, keeping the car stable and tracking true.
To ensure the highest level of safety and performance, our underframes are designed and manufactured in full compliance with Indian Railway standards such as RDSO WD-21-MISC-2019, as well as international standards including AAR and UIC specifications. All relevant material tests and welding procedures are certified, helping our clients streamline their procurement processes and meet strict regulatory requirements.
Structural Design & Load-Bearing Capacity
- Upgraded Axle Loading: Indian freight networks are rapidly moving from standard 22.82-tonne limits to 25-tonne and 32.5-tonne heavy-haul standards (particularly along the Dedicated Freight Corridors managed by DFCCIL).
- Deflection Control: Center sills are built with precise pre-camber parameters so the frame remains completely level under maximum payload weight rather than sagging in the middle.
- Payload Versatility: We fabricate frames engineered for payload capacities ranging from 40 to over 80 metric tons, depending on wagon type and wheel placement.
Industry Standard Reference: Per Indian Railways RDSO design guidelines for heavy freight stock (such as BOXNHL and BCNAHS wagons), the main structural members must withstand longitudinal buffing impacts of up to 250 tonnes without permanent deformation.
Fixture-Based Fabrication Process for Wagon Underframe
When you’re building a chassis at scale, dimensional consistency is non-negotiable. A millimeter of twist in the shop can lead to severe rail wear and hot-box problems on the track. That is why we use full-length, rigid assembly jigs and fixtures.
Fabrication Metric | Standard Manual Fabrication | Dedicated Fixture Fabrication |
Frame Squareness | High risk of heat warp during welding | Held tight within ±1.5 mm tolerance |
Weld Deflection | Uneven stress points across joints | Symmetrical clamping during SAW/MIG welding |
Fleet Consistency | Minor variations between units | 100% interchangeable sub-assemblies |
Rework Rates | 8% – 12% post-weld alignment work | Under 0.5% post-weld correction |
- Cyclotron is the fastest growing Railway Wagon Underframe Manufacturer in India, based out of Pune.
- Cyclotron is ISO 9001 Certified to manufacture heavy structural wagon underframes upto 22 metres in length and 20 tons of weight.
Material Selection
To handle the continuous mechanical shock and outdoor exposure across varying climates, steel selection follows strict Indian Railways specifications:
Corrosion-Resistant Steel (IRSM 41-97 / Corten)
It is used on side sills and cross-members that are exposed to moisture, chemical washouts, and abrasive cargo such as coal or iron ore.
High-Tensile Structural Steel (IS 2062 E350 / E450 Grade)
This is used in primary stress areas, center sills, body bolsters, and draft gear pockets for high yield strength under tension.
Micro-Alloyed Steels
Integrated into heavy-haul chassis designs to trim down unnecessary tare weight without sacrificing load capacity.
Wagon Types We Support
We fabricate underframes for a wide variety of freight wagons, ensuring they are precise, durable, and compliant with Indian Railways standards. The range of wagon categories that our manufacturing capabilities include is as follows:
- Box Wagons: Designed for bulk commodities, box wagons require robust underframes to support fully enclosed loads and withstand dynamic rail conditions.
- Flat Wagons: Used for transporting containers, machinery, and oversized freight, flat wagon underframes are engineered for high strength and versatility.
- Hopper Wagons: Built for the efficient movement of loose bulk materials such as coal, ore, or aggregates, our hopper heavy fabrication wagon underframes are customized for high payloads and efficient discharge.
- Covered Wagons: These wagons protect goods from weather and theft. The underframes are fabricated to support both the superstructure and varied cargo weights.
- Special Purpose Wagons: For unique or custom requirements—such as automobile carriers, well wagons, or specialized project cargo—we manufacture underframes to meet the precise operational and safety needs.
Frequently Asked Questions
1. What is the main function of a wagon underframe?
The underframe acts as the core structural foundation of the wagon. It supports the dead weight of the cargo body while absorbing all pulling (draft) and pushing (buffing) forces during braking, acceleration, and coupling.
2. What load capacities can your wagon underframes handle?
Our standard underframes support Indian Railways axle loads ranging from 20.32 tonnes to 25 tonnes, with custom heavy-haul chassis engineered for up to 32.5 tonnes per axle.
3. Do you fabricate underframes for different wagon designs?
Yes, we manufacture customized underframes for Open Box (BOXN), Flat (BRN), Hopper (BOBRN), Covered (BCN), and specialized industrial rail cars. You can browse our dedicated wagon-type pages for specific structural specs.
