Railway underframe manufacturer in India

Cyclotron Industries is the leading Railway Underframe manufacturer in India.
We manufacture all types of Railway underframes like Coaches underframes, UTV Underframes, Locomotives underframes, Wagon underframes, RBMV Underframes.

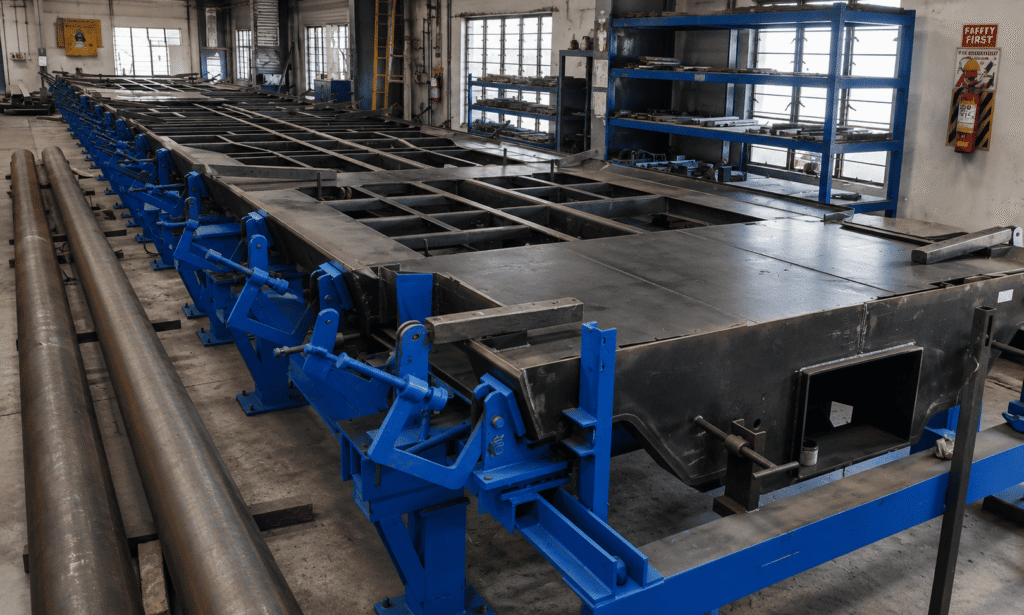

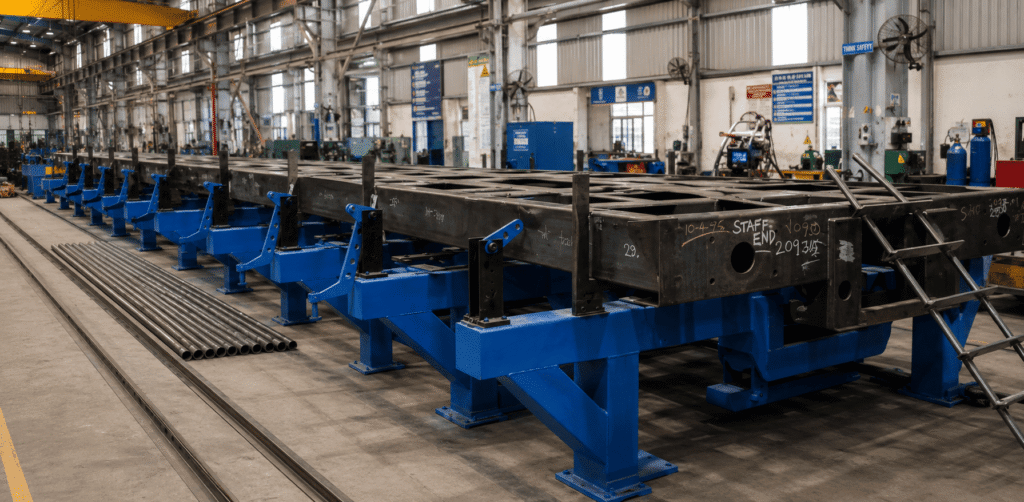

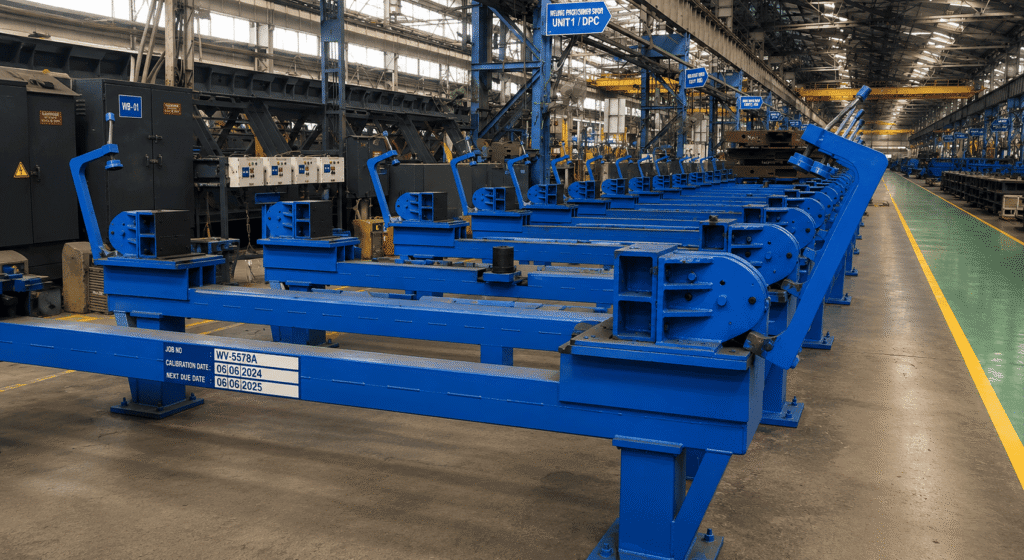

Inhouse fixtures for all types of underframes gives us the advantage for precision underframe fabrication and assembly.

Introduction : Railways Underframe Manufacturer

The global railway network is expanding rapidly, and at its heart lies the need for uncompromising structural integrity. A railway underframe serves as the literal backbone of any railway coach, enduring immense structural loads, high-speed vibrations, and decades of environmental stress.

In India’s rapidly growing rolling stock market, manufacturing these heavy fabricated structures demands extreme precision, robust infrastructure, and absolute adherence to stringent safety standards. Securing a reliable railway underframe manufacturer in India is critical for global transit authorities and domestic networks looking to scale safely and efficiently.

Cyclotron Industries stands at the forefront of this niche, delivering high-capacity, heavy fabricated rail structures built exactly to customer drawings and global railway quality requirements. By combining advanced welding technologies, rigorous stress-testing, and state-of-the-art infrastructure, Cyclotron Industries ensures that every Rail coach fabrication frame is engineered to withstand the toughest tracks and the longest journeys.

Rail Underframe Manufacturer in India

Cyclotron Industries is the leading Railway Underframe manufacturer in India.
We manufacture all types of Railway underframes like Coaches underframes, UTV Underframes, Locomotives underframes, Wagon underframes, RBMV Underframes.

Email: enquiry@cyclotronindustries.com

What is a Rail Underbody Frame?

A rail underbody frame is the heavy-duty steel chassis that forms the foundation beneath the main body shell of a railway vehicle. Think of it as the ultimate load-bearing platform. It bridges the gap between the bogies (wheel assemblies) and the passenger or cargo cabin above.

Beyond simply acting as a floor, the underbody frame is engineered to:

Support the entire body shell and distribute dead weights uniformly.
Absorb massive operational dynamic loads, including acceleration, heavy braking, and buffing (coupling) forces.
Offer high fatigue resistance to prevent structural micro-fractures over millions of kilometers.
Maintain strict dimensional accuracy to ensure perfectly aligned integration with the upper shell and lower bogies.

Our Rail Underbody Frame Manufacturing Capabilities

At Cyclotron Industries, we don’t just fabricate; we engineer dependability at scale. Our manufacturing ecosystem is optimized to handle massive, complex geometries without sacrificing a single millimeter of precision.

High-Volume Heavy Fabrication: Scalable throughput exceeding 200+ tons per month, allowing us to comfortably support large-scale rolling stock rollouts.
Advanced CNC Laser Cutting: High-powered laser lines ensure perfectly prepped, defect-free edge profiles for thick structural plates.
Large-Scale CNC Machining: Post-fabrication machining capabilities to achieve the ultra-tight tolerances required for critical bogie mounting points

Precision Welding Excellence: Specialized fixtures and manipulators managed by certified welders to eliminate structural distortion.
Expansive Fabrication Bays: Massive overhead crane capacities and floor space designed specifically for full-length heavy railway fabrication coach assemblies.
End-to-End Inspection: Comprehensive dimensional checking utilizing advanced laser trackers and coordinate measuring systems.
Prototype to Batch Production: Flexible operational models to smoothly transition from initial first-article inspection prototypes into continuous batch production lines.

The Manufacturing Process: From Blueprint to Track

Every Railway structural fabrication underbody frame we ship undergoes a highly disciplined, multi-stage production lifecycle to ensure zero-defect deployments.

1. Engineering Review & DFM

Our technical team collaborates closely with your design files. We perform a thorough Design for Manufacturing (DFM) assessment to optimize weld joints, material yields, and assembly sequencing before a single torch is lit.

2. Strategic Material Procurement

We source premier, certified structural steels accompanied by full mill test reports (MTRs). Every plate is traceably documented to meet international railway standards.

3. CNC Cutting & Edge Preparation

Plates are processed using precision CNC laser, plasma, or oxy-fuel cutting. Beveling and edge preparation are performed mechanically to ensure deep, flawless weld penetration.

4. Heavy Jigs Welding & Fabrication

Components are locked into custom-engineered heavy jigs to prevent thermal warping. Welding is carried out in strict accordance with global rail standards (such as EN 15085 / ISO 3834 structural welding requirements).

5. Post-Weld Machining & Quality Inspection

Assembled frames undergo stress relieving where required, followed by critical CNC machining of alignment faces. Every unit undergoes stringent Non-Destructive Testing (NDT), including Ultrasonic and Magnetic Particle testing, as well as complete laser coordinate mapping.

6. Surface Treatment, Shot Blasting & Dispatch

Frames are thoroughly shot-blasted to SA 2.5 standards to strip premium steel profiles, coated with high-durability, anti-corrosive railway primers, carefully packed, and dispatched via specialized heavy-haul logistics.

Rail Underframe Manufacturer in India

Cyclotron Industries is the leading Railway Underframe manufacturer in India.
We manufacture all types of Railway underframes like Coaches underframes, UTV Underframes, Locomotives underframes, Wagon underframes, RBMV Underframes.

Email: enquiry@cyclotronindustries.com

Applications of Rail Underbody Frames

Rail underbody frames are essential structural elements, widely used across various types of rail coach fabrication vehicles to improve safety and functionality.

1. Passenger Coaches:

Rail underbody frames play a vital role in passenger coaches by providing structural strength and supporting essential systems such as brakes, batteries, and HVAC units. This ensures the passenger safety and comfort during travel.

2. Metro Coaches:

In metro coaches, Rail coach fabrication frames are engineered for frequent starts and stops, offering durability and easy maintenance. They support the high-capacity urban transit environment.

3. EMU Coaches:

EMU (Electric Multiple Unit) coaches rely on robust underbody frames to house electrical equipment and systems, thereby enabling efficient and reliable commuter services.

4. Railway Maintenance Vehicles:

Specialized underbody frames in maintenance vehicles accommodate heavy machinery and tools required for railway track repairs and upkeep.

5. Special Railway Rolling Stock:

Special rolling stock, including freight and luxury coaches, often features custom-designed underbody frames to meet unique operational requirements.

6. Export Railway Projects:

For export projects, underbody frames are customized to adhere to various international standards, ensuring compatibility and performance across different rail networks.

Why Choose Cyclotron Industries?

Discover the Cyclotron Industries difference experience advanced manufacturing, trusted expertise, and smooth support that ensure your projects succeed from concept to completion. Partner with us for excellence at every step.

Heavy Fabrication Expertise: Benefit from our decades of experience in tackling complex projects. Our skilled team excels at handling large-scale structures, delivering robust results that stand the test of time.
Large Machining Capabilities: We offer state-of-the-art machining for oversized parts with precision and efficiency. No matter how demanding your requirements, our facility is equipped to handle them with ease.
Skilled Welding Team: Our certified welders use advanced techniques to guarantees that every joint is strong, reliable, and built to last. Quality craftsmanship is at the heart of each project we deliver.

High Dimensional Accuracy: Precise tolerances are our standard. Our meticulous approach guarantees your components fit perfectly, enhancing the performance and reliability of your final assembly.
Quality Inspections: Every product undergoes thorough inspections using cutting-edge technology. We guarantee top-tier quality, so you can trust in the performance and safety of your investment.
Reliable Delivery: Your deadlines are our priority. With a proven track record for on-time deliveries, we ensure your projects stay on schedule and within budget.
Prototype & Production Support: From initial design to full-scale production, our dedicated team supports you at every phase. We help you innovate, troubleshoot, and scale efficiently.
Competitive Manufacturing Costs: Maximize your value with our cost-effective solutions. We combine quality and affordability so your business remains competitive without sacrificing results.

Premium Materials We Work With

We process a versatile selection of high-performance, certified structural steels customized to international railway specifications:

Material Grade	Classification Type	Primary Application/Benefit
IS 2062	Indian Standard Structural Steel	Standard structural members, excellent weldability, dependable toughness.
S355 (JR/J2/K2)	European Standard Structural Steel	High-yield strength under winter/low-temperature operations; exceptional impact resistance.
High-Strength Steels	Advanced Low-Alloy Steels	Weight reduction initiatives (lightweighting) without sacrificing load capacity.
Railway-Grade Steels	Corten / Weathering Steels	Corrosive environment operations; high atmospheric corrosion resistance.

Rail Underframe Manufacturer in India

Cyclotron Industries is the leading Railway Underframe manufacturer in India.
We manufacture all types of Railway underframes like Coaches underframes, UTV Underframes, Locomotives underframes, Wagon underframes, RBMV Underframes.

Email: enquiry@cyclotronindustries.com

Cyclotron group clients

Looking for a Rail Underbody Frame Manufacturer in India?

In the rail industry, structural failure is not an option. Your project requires an engineering partner that matches your obsession with precision, structural safety, and execution timelines. Cyclotron Industries delivers the heavy-fabrication muscle and machining accuracy your rolling stock demands.

Let’s build the future of rail transit together. Get in touch with our technical sales team today to initiate a detailed engineering review, submit your manufacturing drawings for an accurate quotation, or schedule a comprehensive audit of our manufacturing facilities.
